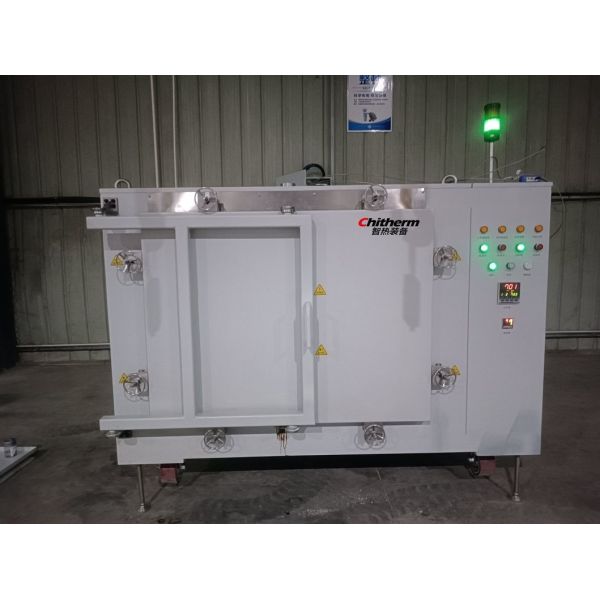

700°C SXF030-07 Type Glue Discharging Box Type Electric Furnace
Product Specifications
Model NO. SXF030 - 07
Range of Applications Industrial
Type Electric Holding Furnace
Usage Drying
Fuel Electric
Atmosphere Air
Effective Chamber Dimensions 600*600*900mm (W*H*D)
Transport Package Wooden Packaging
Specification 1954*1800*2090mm (W*D*H)
Trademark Chitherm
Origin China
Certification ISO
Product Overview

The SXF030-07 type glue-discharging box furnace is designed for drying, degumming, curing and other processes of electronic ceramics, glass, electronic components and other electronic products. It can also be used for heat treatment processes of other products.

Key Features:
  • Fully stainless steel furnace structure
  • Stainless steel heating tubes for even heating
  • Internal centrifugal fan for hot air stirring and horizontal air movement
  • Fiber insulation material
  • Imported single-loop intelligent temperature controller
700 ordm C Sxf030 07 Type Glue Discharging Box Type Electric Furnace Air Atmosphere Atmosphere Certified by ISO ISO Certified 700 ordm C Sxf030 07 Type Glue Discharging Box Type Electric Furnace Air Atmosphere Atmosphere Certified by ISO ISO Certified
Technical Specifications
Operating Temperature RT to 700°C
Effective Furnace Size 600×600×9000 (W×H×D) mm
Furnace Material SUS310S Stainless Steel
Temperature Uniformity ±6°C (at 600°C platform)
Maximum Heating Power About 45Kw
Power Supply Three-phase, 380VAC, 50Hz, 60KVA
Weight About 1500Kg
Standard Delivery Contents
Item Note Quantity
Basic Components Furnace 1 unit
Inspection Certificate Certificate of major outsourced components 1 SET
Technical Documents Instructions, technical documents 1 SET
Key Components Stainless Steel Heating Tube 1 SET
Temperature Controller 2 SET
Heated Air Motor 1 SET
Installation Requirements
  • Environmental Conditions: Temperature 0 to 40°C, humidity ≤80% RH, no corrosive gases
  • Ventilation System: Extraction capacity greater than 20 m³/h
  • Floor Requirements: Level, load-bearing capacity >300 Kg/m²
  • Power Requirements: Capacity greater than 60 kVA, 3-phase 5-wire
  • Installation Space: Minimum 2500mm × 3500mm × 3000mm (W × D × H)
